Bar Grating Fastener – Top Part 1 – Mesh Pitch 22 mm – hot-dip galvanised

Product Description

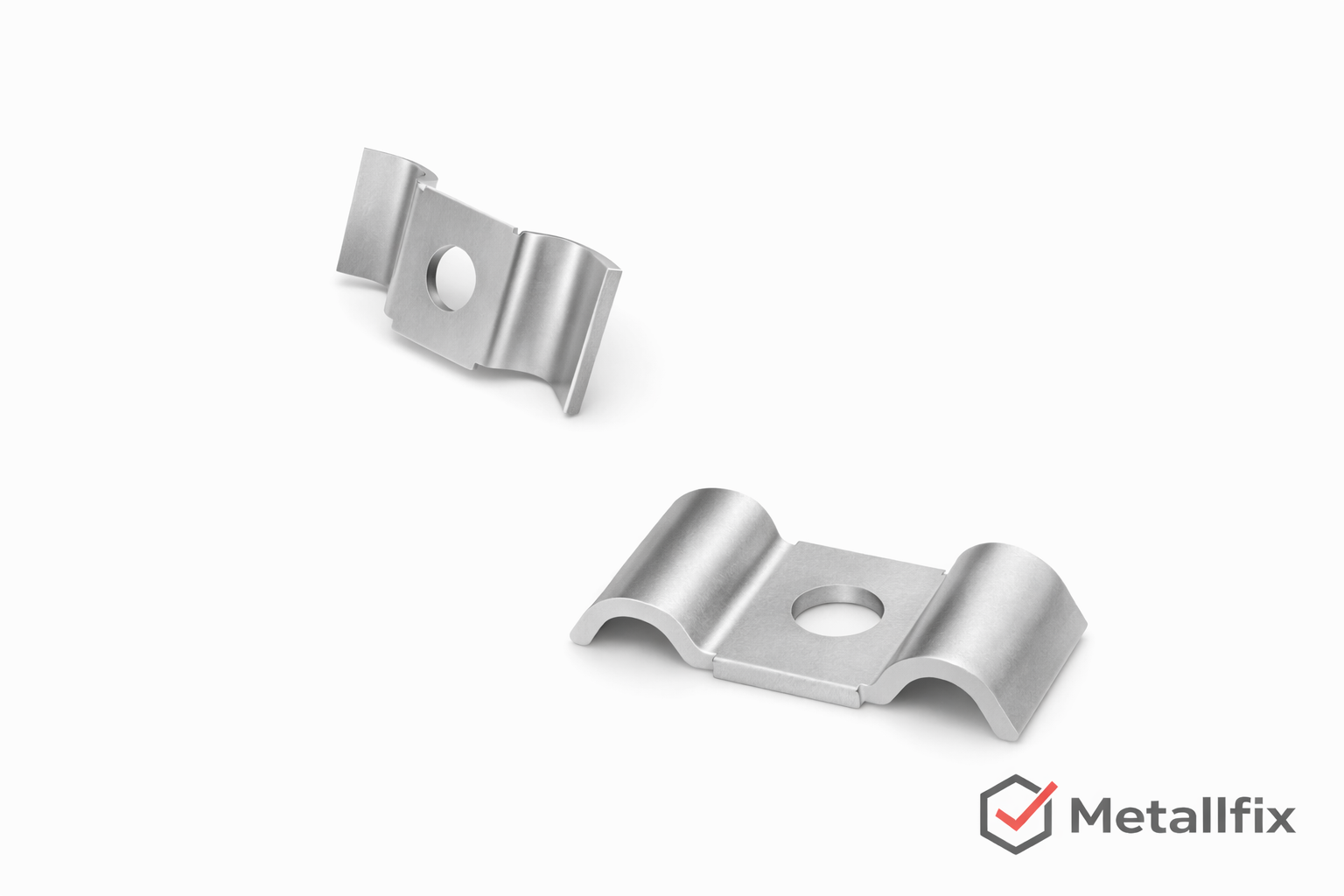

The Top Part 1 is a precision-manufactured top clamp component made of steel, used as the upper component in a bar grating fastening system.
It is specifically designed for bar gratings with a mesh aperture of 22 mm and a bearing bar spacing of at least 19 mm.

The symmetrical bending contour and the defined through-bore ensure reliable fastening to the bar grating and secure force transmission.
The central bore is designed for assembly with standardised cylinder head screws DIN 84 M8.

The component is manufactured to technical drawing and is ideally suited by its form and material selection for use in industrial plant systems, structural steelwork, walkways, and maintenance and service areas.
A hot-dip galvanised finish to DIN EN ISO 1461 is optionally available.

⚠️ Bar grating fasteners are currently not subject to CE standards and must be used in accordance with the respective application requirements and applicable legal regulations.

Technical Data

Technical Data:

• Component type: Bar grating fastener – Top part
• Designation: Top Part 1 / Upper Part 1
• Grating mesh aperture: 22 mm
• Bearing bar spacing: ≥ 19 mm
• Material: Steel
• Surface: Hot-dip galvanised to DIN EN ISO 1461 (optional)
• Bore: Ø suitable for cylinder head screw DIN 84 M8
• Manufacturing process: Punching & bending
• Specification: Per technical drawing
• Weight per piece (hot-dip galvanised): approx. 0.014 kg

Component drawing available on request.

Volume Pricing – the more you order, the lower the price

From 10,000 pcs: special price on request – Contact us

Need large quantities? From 250 pieces total quantity you will receive an individual quotation with volume pricing. Request a quote now →
