Bar Grating Fastener – Top Part 18 – from Mesh Pitch 15 mm – hot-dip galvanised
Bar Grating Fastener – Top Part 18 – from Mesh Pitch 15 mm – hot-dip galvanised
Couldn't load pickup availability
Cancellation Policy & Returns – Metallfix.store Contact – Metallfix.store 📄 Shipping Information – Metallfix.store ABOUT US – Metallfix.store 📄 Terms and Conditions – Metallfix.store
Product Description

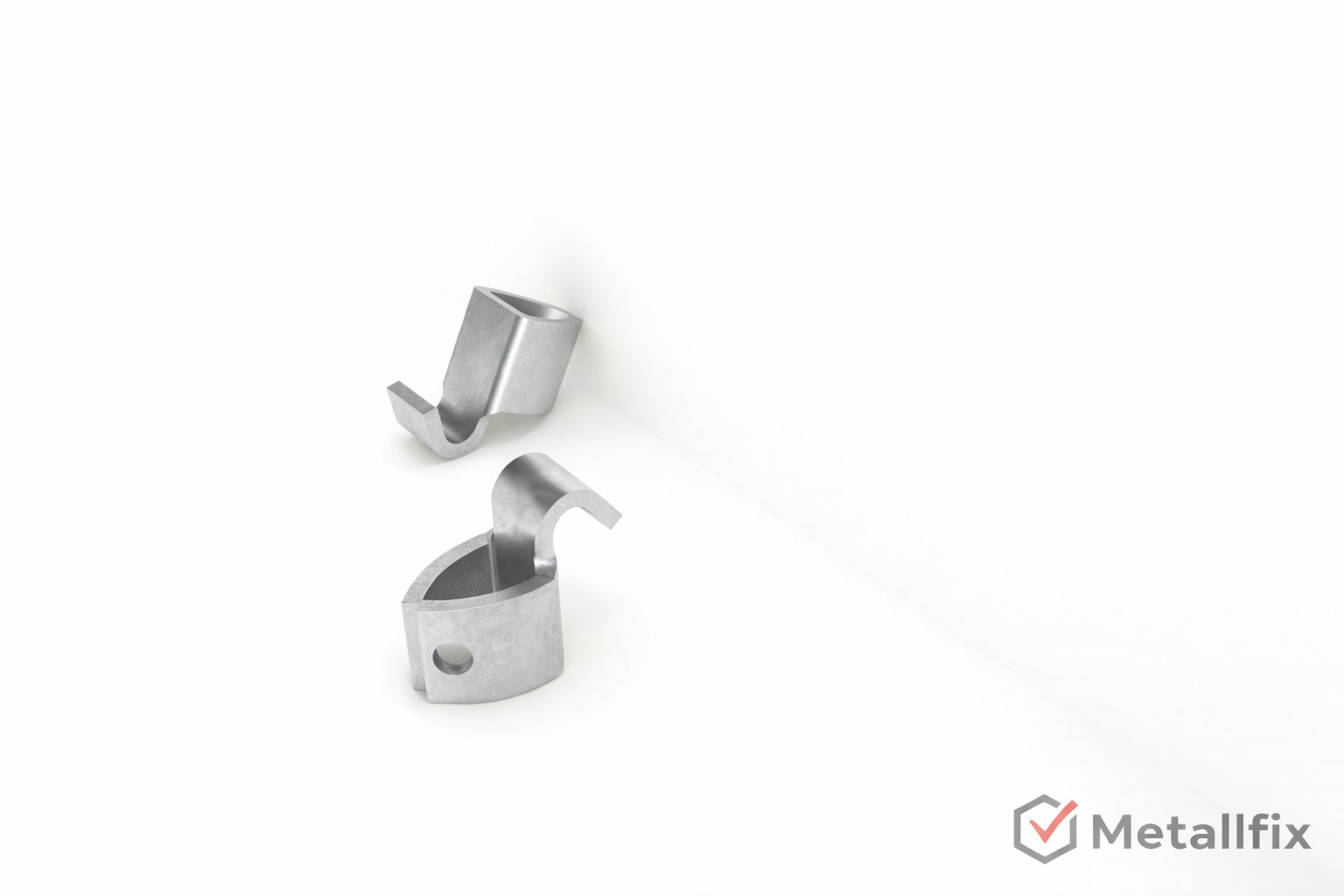

The Top Part 18 is a precision-manufactured top clamp component made of steel and is used as the upper component within a bar grating fastening system.
It is designed for the secure fixing of bar gratings and enables reliable force transmission between the bar grating and the substructure.
The component is designed as a top clamp part for bar gratings with a mesh pitch from 15 mm.
With a mesh pitch of 15 mm, the top part can be used up to a bearing bar thickness of 3 mm.
The bearing bar spacing must be at least 19 mm.
The defined bending geometry and the centrally positioned through-bore enable a form-fit assembly on the bar grating.
Assembly is designed for use of slotted cylinder head screws to DIN 84 M8.
Top Part 18 is manufactured to technical drawing and is suitable by its design and material selection for use in structural steelwork, industrial plant systems, walkways, and maintenance and service areas.
The surface is hot-dip galvanised to DIN EN ISO 1461 and provides reliable corrosion protection for indoor and outdoor applications.
⚠️ Note:
Bar grating fasteners are currently not subject to CE standards but must be used in accordance with the legal regulations applicable to the respective application.
Technical Data
Technical Data:
- Component type: Bar grating fastener – Top part
- Designation: Top Part 18 / Upper Part 18
- Version: Top clamp part
- Mesh pitch: from 15 mm
- Bearing bar thickness: up to 3 mm at 15 mm mesh pitch
- Bearing bar spacing: minimum 19 mm
- Material: Steel
- Surface: Hot-dip galvanised to DIN EN ISO 1461
- Fastening: Slotted cylinder head screw DIN 84 M8
- Manufacturing process: Punching & bending
- Specification: Per technical drawing
- Weight per piece (hot-dip galvanised): approx. 0.019 kg
Special prices from 1,000 pieces on request.
Lead times may vary depending on quantity and project.
Component drawing available on request.
