Bar Grating Fastener – Top Part 22 – Mesh Pitch 33/34mm – hot-dip galvanised

Product Description

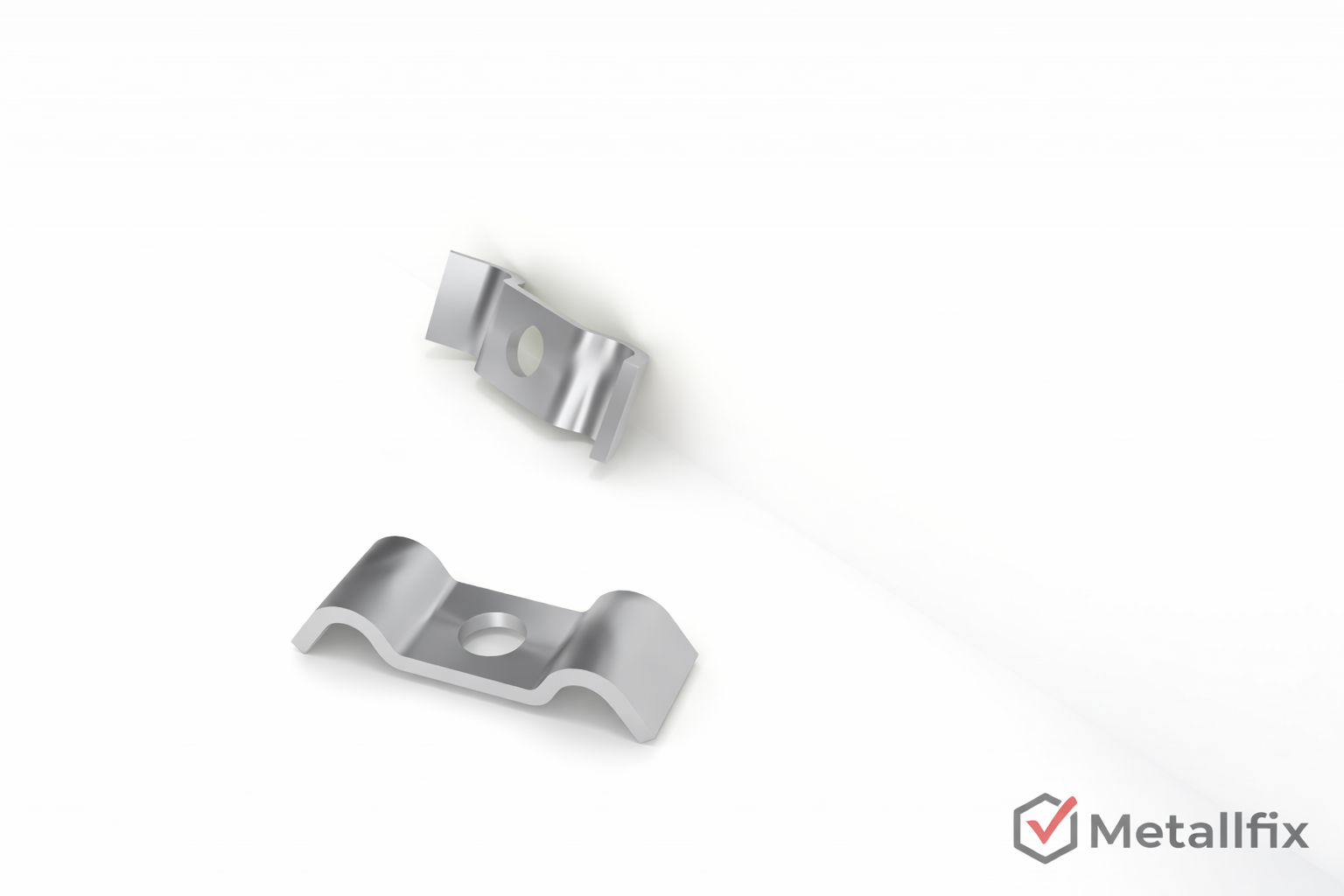

The Top Part 22 is a precision-manufactured top clamp component made of steel, used as the upper component within a bar grating fastening system.
It is suitable for bar gratings with a mesh pitch of 33/34 mm and a bearing bar spacing of at least 18 mm.

The symmetrical bending contour and the defined through-bore ensure reliable fixing of the bar grating and secure force transmission to the substructure.
The central bore is designed for assembly with hex bolts DIN 933 M8 and provides a practical, robust bolted connection.

The component is manufactured to technical drawing and is ideally suited by its design and material selection for use in industrial plant systems, structural steelwork, walkways, and maintenance and service areas.
The surface is hot-dip galvanised to DIN EN ISO 1461 and provides reliable corrosion protection even under demanding environmental conditions.

⚠️ Note:
Bar grating fasteners are currently not subject to CE standards and must be used in accordance with the respective application requirements and applicable legal regulations.

Technical Data

• Component type: Bar grating fastener – Top part
• Designation: Top Part 22 / Upper Part 22
• Grating type: Press-locked grating, press-welded grating
• Mesh pitch: 33 / 34 mm
• Mesh aperture: 30 × 20 mm
• Bearing bar spacing: ≥ 18 mm
• Material: Steel
• Surface: Hot-dip galvanised to DIN EN ISO 1461
• Bore: Ø suitable for hex bolt DIN 933 M8
• Manufacturing process: Punching & bending
• Specification: Per technical drawing
• Grade: Hot-dip galvanised

Lead times may vary depending on quantity and project.

Component drawing available on request.

Volume Pricing – the more you order, the lower the price

From 10,000 pcs: special price on request – Contact us

Need large quantities? From 250 pieces total quantity you will receive an individual quotation with volume pricing. Request a quote now →
