Bar Grating Fastener – Top Part 6 – Mesh Pitch 33/34mm – Deep Version – hot-dip galvanised
Bar Grating Fastener – Top Part 6 – Mesh Pitch 33/34mm – Deep Version – hot-dip galvanised
Couldn't load pickup availability
Cancellation Policy & Returns – Metallfix.store Contact – Metallfix.store 📄 Shipping Information – Metallfix.store ABOUT US – Metallfix.store 📄 Terms and Conditions – Metallfix.store
Product Description

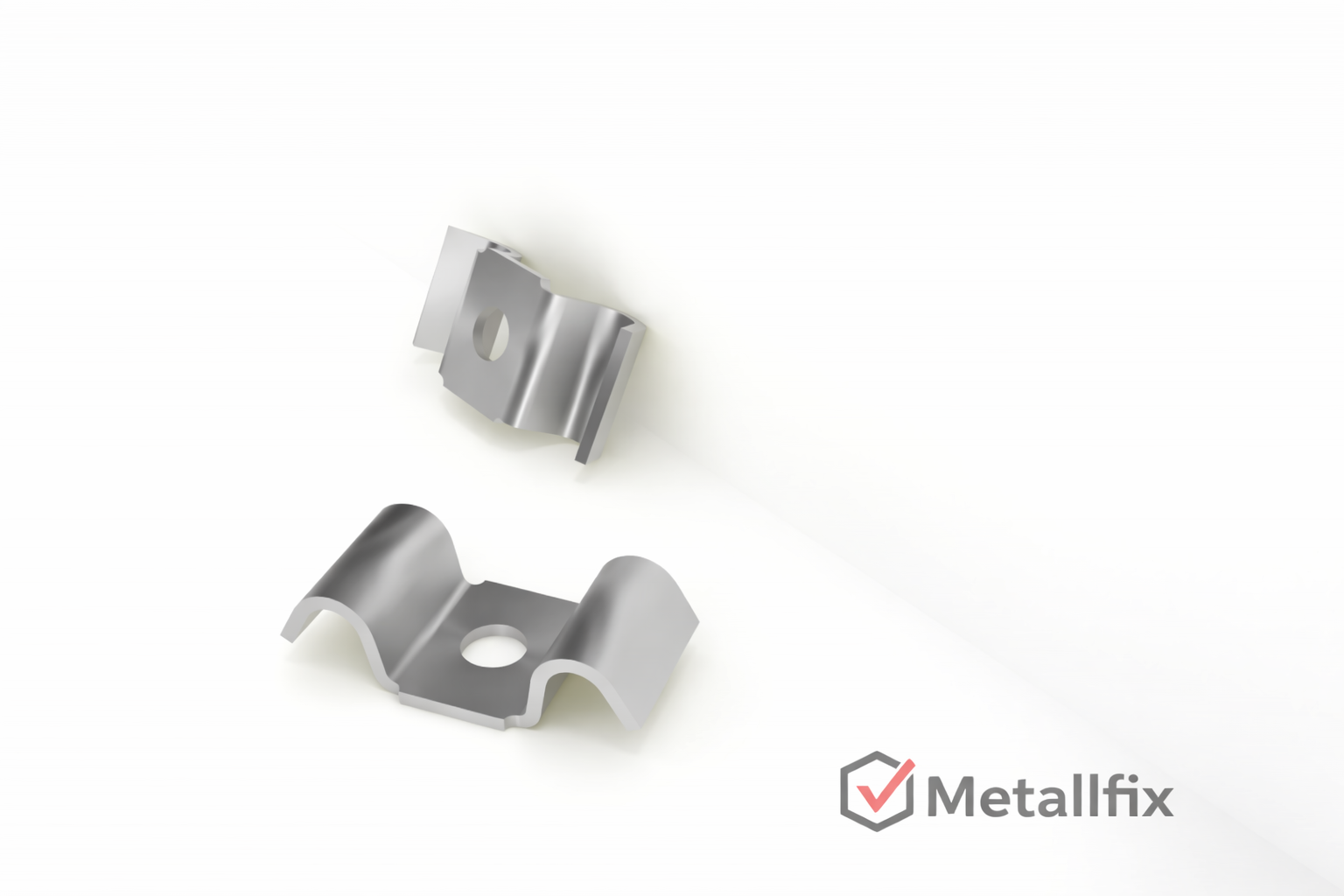

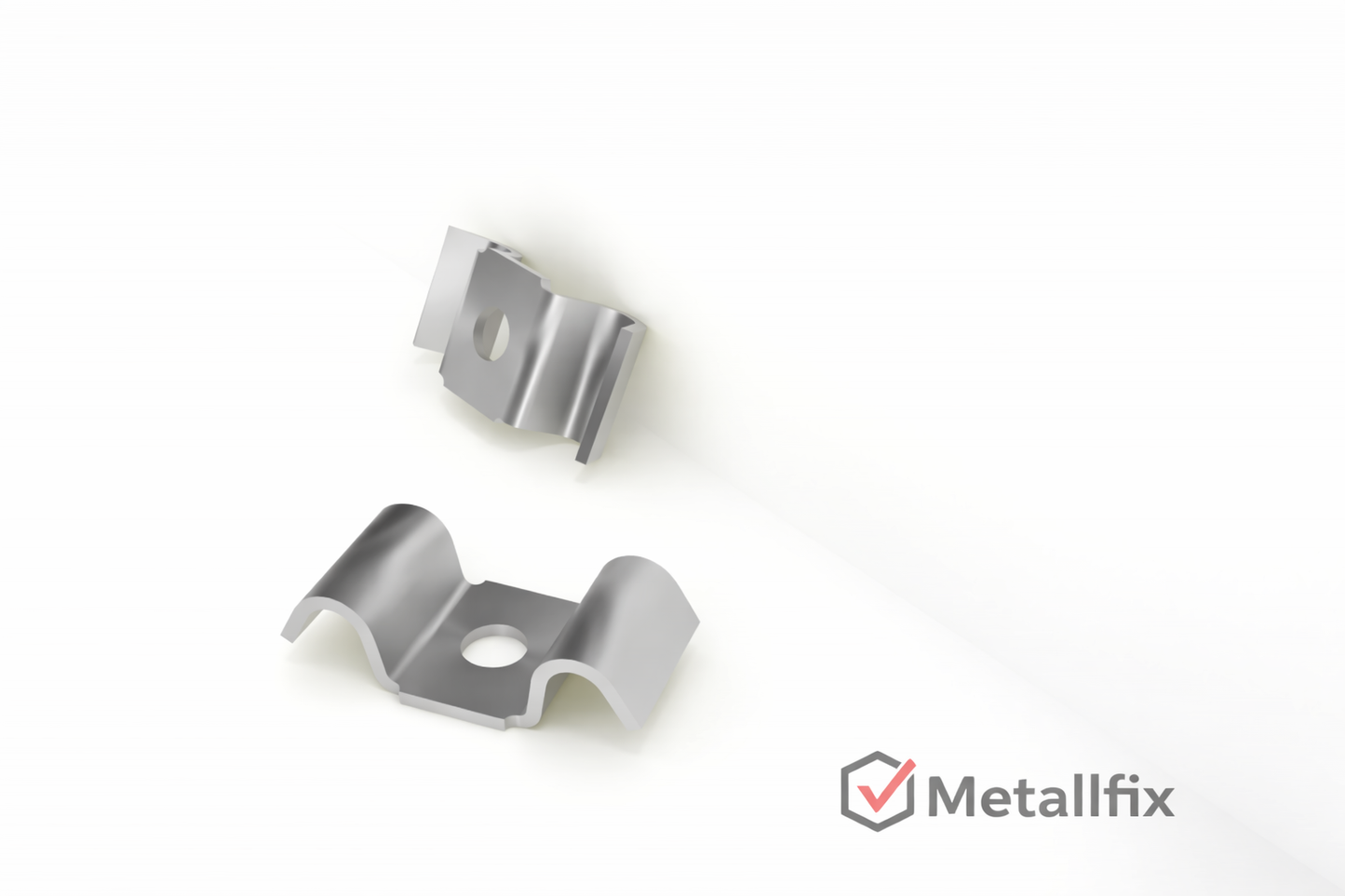

The Top Part 6 is a precision-manufactured top clamp component made of steel, used as the upper component within a bar grating fastening system.
It is specifically designed for press-locked and press-welded gratings with a mesh pitch of 33/34 mm and is suitable for a mesh aperture of 30 x 30 mm and a bearing bar spacing of at least 26 mm.
The symmetrical bending contour and the defined through-bore ensure secure fixing of the bar grating and reliable force transmission to the substructure.
The component is deep-drawn by approx. 5 mm, which recesses the bolt head and ensures a flush, installation-friendly bolted connection.
The central bore is intended for assembly with hex bolts DIN 933 M8 and enables a practical, robust fastening even under elevated mechanical loads.
The top part is manufactured to technical specification and is ideally suited by its design for use in industrial plant systems, plant and structural steelwork, walkways, and maintenance and service areas.
The surface is hot-dip galvanised to DIN EN ISO 1461 and provides reliable corrosion protection even under demanding environmental conditions.
Bar grating fasteners are currently not subject to CE standards and must be used in accordance with the respective application requirements and applicable legal regulations.
Technical Data
- Component type: Bar grating fastener - Top part
- Designation: Top Part 6 / Upper Part 6
- Grating type: Press-locked grating, press-welded grating
- Mesh pitch: 33 / 34 mm
- Mesh aperture: 30 x 30 mm
- Bearing bar spacing: 26 mm min.
- Material: Steel
- Surface: Hot-dip galvanised to DIN EN ISO 1461
- Bore: suitable for hex bolt DIN 933 M8
- Design: deep-drawn approx. 5 mm to recess bolt head
- Manufacturing process: Punching & bending
- Specification: Per technical specification
- Grade: Hot-dip galvanised
Lead times may vary depending on quantity and project.
Component drawing available on request.
Volume Pricing - the more you order, the lower the price
| Quantity | Total Price | Price / Unit | Savings |
|---|---|---|---|
| 10 pcs | 16.00 EUR | 1.60 EUR / pc | - |
| 100 pcs | 100.00 EUR | 1.00 EUR / pc | -38 % |
| 250 pcs | 180.00 EUR | 0.72 EUR / pc | -55 % |
| 500 pcs | 220.00 EUR | 0.44 EUR / pc | -73 % |
| 1,000 pcs - Best value | 350.00 EUR | 0.35 EUR / pc | -78 % |
From 10,000 pcs: special price on request - Contact us
Need large quantities? From 250 pieces total quantity you will receive an individual quotation with volume pricing. Request a quote now
