Bar Grating Fastener – Top Part 23, hot-dip galvanised
Bar Grating Fastener – Top Part 23, hot-dip galvanised
Couldn't load pickup availability
Cancellation Policy & Returns – Metallfix.store Contact – Metallfix.store 📄 Shipping Information – Metallfix.store ABOUT US – Metallfix.store 📄 Terms and Conditions – Metallfix.store
Product Description

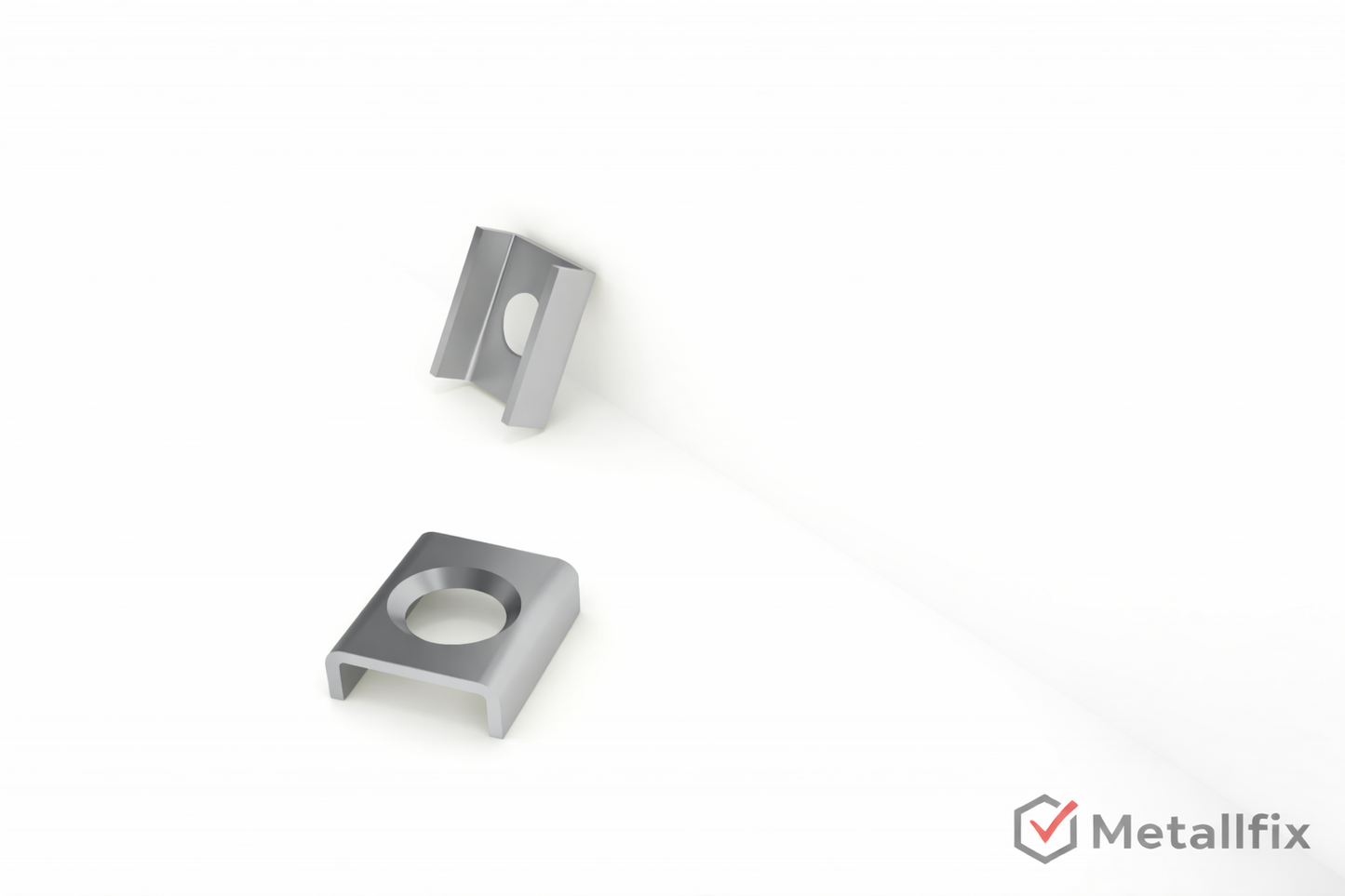

The Top Part 23 is a precision-manufactured top clamp component made of steel, used as the upper component within a bar grating fastening system.
It is designed for mounting over two cross bars and is specifically suitable for bar gratings with a mesh aperture of at least 30 mm and a cross bar pitch of maximum 12 mm.
The defined bending contour and the centrally positioned through-bore enable reliable fastening to the bar grating and secure force transmission to the substructure.
The bore is designed for assembly with countersunk socket head screws DIN 7991 M8 and ensures a flush-fitting bolted connection.
The component is manufactured to technical drawing and is ideally suited by its robust design for use in industrial plant systems, structural steelwork, walkways, platforms, and maintenance and service areas.
The finish is hot-dip galvanised to DIN EN ISO 1461 and provides reliable corrosion protection even under demanding environmental conditions.
⚠️ Note:
Bar grating fasteners are currently not subject to CE standards and must be used in accordance with the respective application requirements and applicable legal regulations.
Technical Data
Technical Data:
- Component type: Bar grating fastener – Top part
- Designation: Top Part 23 / Upper Part 23
- Grating type: Press-locked grating, press-welded grating
- Assembly: over 2 cross bars
- Mesh aperture: 30 × 10 mm
- Minimum mesh aperture: ≥ 30 mm
- Cross bar pitch: max. 12 mm
- Material: Steel
- Surface: Hot-dip galvanised to DIN EN ISO 1461
- Bore: suitable for countersunk screw DIN 7991 M8 (socket head)
- Manufacturing process: Punching & bending
- Specification: Per technical drawing
Special prices from 2,000 pieces on request.
Lead times may vary depending on quantity and specification.
Component drawing available on request.
Volume Pricing – the more you order, the lower the price
| Quantity | Total Price | Price / Unit | Savings |
|---|---|---|---|
| 10 pcs | 8.00 € | 0.80 € / pc | – |
| 100 pcs | 60.00 € | 0.60 € / pc | -25 % |
| 250 pcs | 100.00 € | 0.40 € / pc | -50 % |
| 500 pcs | 170.00 € | 0.34 € / pc | -57 % |
| 1,000 pcs ⭐ Best value | 260.00 € | 0.26 € / pc | -68 % |
From 10,000 pcs: special price on request – Contact us
Need large quantities? From 250 pieces total quantity you will receive an individual quotation with volume pricing. Request a quote now →
